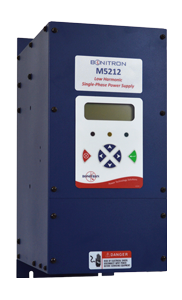

M5212

The M5212 Single Phase Power Supply is a low harmonic, IEEE 519-compliant solution that eliminates the need for a reactor when powering 3-phase AC drives from a single phase source.

3-phase motors are the economical choice for motor applications above 10 horsepower, however many locations only have single phase power available due to the cost of expanding 3-phase availability.

To increase efficiency in motor-driven applications, variable frequency drives (VFDs) can be used to control 3-phase motors. VFDs offer advantages such as soft starting, speed regulation, and increased efficiency. Most VFDs are not designed for single phase operation, and even those that are must be oversized by up to 300% when operated from a single phase source.

Fortunately, there is no longer a need to oversize 3-phase drives when using them in single phase applications thanks to the Bonitron M5212 Single Phase Power Supply. The M5212 has a single phase AC input and serves as a power supply for one or multiple drives via DC bus terminal connections. In addition, the M5212 aids in protecting your drive from the high currents caused by single phase operation while running cooler, more efficiently, and in line with harmonic compliance standards
