SOLUTIONS FOR LENZE AC TECH DRIVES

Lenze AC Tech

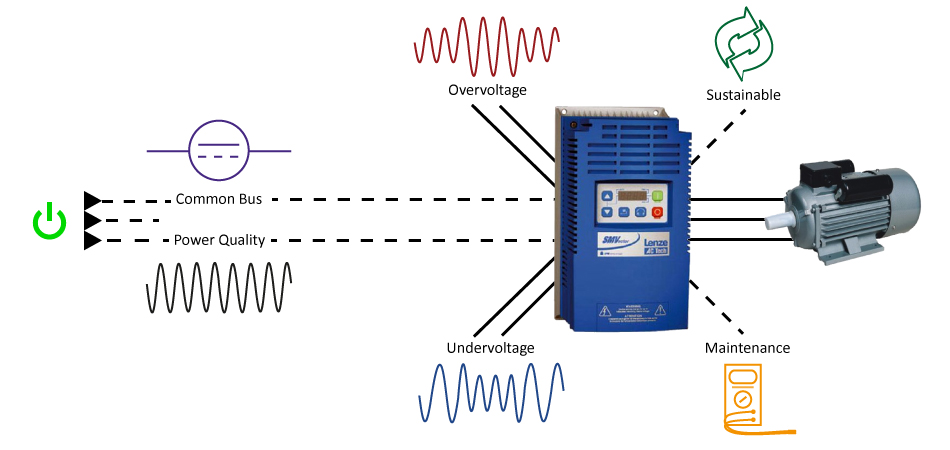

Bonitron has a vast offering of variable frequency drive accessories for Lenze AC Tech. Select your drive series below to match Bonitron Braking Transistors, Line Regeneration, or Single Phase Power Supplies with your drive. Please contact Bonitron for Resistor sizing for your drive. DC bus connections are needed to connect a Bonitron transistor, line regen or power supply.

For more information please call Bonitron at 615-244-2825 or submit info here.

Please select your drive to show the table to match your drive to our Bonitron products:


Drive Power Duty Model Number Braking Current
(Peak)
Braking Current
(RMS)
Minimum
Resistance
Dimensions
(H x W x D)
230 - 240 VAC | 375VDC Setpoint
0 - 3.3 HP 0 - 20% M3675T-L10 10 A 2 A 38 Ω 7.00" x 2.06" x 6.75"
0 - 3.3 HP 20 - 50% M3675T-L30 30 A 7.75 A 12.5 Ω 12.75" x 3.00" x 8.70"
0 - 3.3 HP 50 - 100% M3675T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
3.3 - 5 HP 0 - 20% M3675T-L15 15 A 3.8 A 25 Ω 12.75" x 3.00" x 8.70"
3.3 - 5 HP 20 - 50% M3675T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
3.3 - 5 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
5 - 10 HP 0 - 20% M3675T-L30 30 A 7.75 A 12.5 Ω 12.75" x 3.00" x 8.70"
5 - 10 HP 20 - 50% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
5 - 10 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 0 - 20% M3575T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
10 - 20 HP 20 - 50% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
380 - 415 VAC | 620VDC Setpoint
0 - 5 HP 0 - 20% M3675T-E10 10 A 2 A 62 Ω 7.00" x 2.06" x 6.75"
0 - 5 HP 20 - 50% M3675T-E30 30 A 7.75 A 20.5 Ω 12.75" x 3.00" x 8.70"
0 - 5 HP 50 - 100% M3675T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
5 - 8 HP 0 - 20% M3675T-E15 15 A 3.8 A 41.25 Ω 12.75" x 3.00" x 8.70"
5 - 8 HP 20 - 50% M3675T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
5 - 8 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
8 - 15 HP 0 - 20% M3575T-E30 30 A 7.75 A 20.5 Ω 12.75" x 3.00" x 8.70"
8 - 15 HP 20 - 50% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
8 - 15 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
15 - 40 HP 0 - 20% M3675T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
15 - 40 HP 20 - 50% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
15 - 40 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
40 - 65 HP 0 - 20% M3675T-E125 125 A 32 A 5 Ω 17.75" x 5.50" x 8.00"
40 - 65 HP 20 - 50% M3452-E150B7 150 A 150 A 4.13 Ω 17.75" x 7.00" x 8.10"
40 - 65 HP 50 - 100% M3452-E150B7 150 A 150 A 4.13 Ω 17.75" x 7.00" x 8.10"
460 - 480 VAC | 750VDC Setpoint
0 - 6.5 HP 0 - 20% M3675T-H10 10 A 2 A 75 Ω 7.00" x 2.06" x 6.75"
0 - 6.5 HP 20 - 50% M3675T-H30 30 A 7.75 A 25 Ω 12.75" x 3.00" x 8.70"
0 - 6.5 HP 50 - 100% M3675T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
6.5 - 10 HP 0 - 20% M3675T-H15 15 A 3.8 A 50 Ω 12.75" x 3.00" x 8.70"
6.5 - 10 HP 20 - 50% M3675T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
6.5 - 10 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 0 - 20% M3575T-H30 30 A 7.75 A 25 Ω 12.75" x 3.00" x 8.70"
10 - 20 HP 20 - 50% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
20 - 50 HP 0 - 20% M3675T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
20 - 50 HP 20 - 50% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
20 - 50 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
50 - 80 HP 0 - 20% M3675T-H125 125 A 32 A 6 Ω 17.75" x 5.50" x 8.00"
50 - 80 HP 20 - 50% M3452-H150B7 150 A 150 A 5 Ω 17.75" x 7.00" x 8.10"
50 - 80 HP 50 - 100% M3452-H150B7 150 A 150 A 5 Ω 17.75" x 7.00" x 8.10"
575 - 600 VAC | 940VDC Setpoint
0 - 63 HP 0 - 20% M3452-C75B7 75 A 75 A 12.5 Ω 17.75" x 7.00" x 8.10"
0 - 63 HP 20 - 50% M3452-C75B7 75 A 75 A 12.5 Ω 17.75" x 7.00" x 8.10"
0 - 63 HP 50 - 100% M3452-C75B7 75 A 75 A 12.5 Ω 17.75" x 7.00" x 8.10"

* Requires external reactor. Reactor sold by Bonitron

Drive Power
(Nominal)
Model Number Output Current Input Current
(AC RMS)
Dimensions
(H x W x D)
208 - 240 VAC Drives
0 - 30 HP M3712-L030 100 A 175 A 20.00" x 7.12" x 10.30"
460 - 480 VAC Drives
0 - 30 HP M3712-H030 55 A 115 A 20.00" x 7.12" x 10.30"
30 - 50 HP M3712-H050 90 A 185 A 20.00" x 7.12" x 10.30"
50 - 75 HP M3712-H075 135 A 250 A 25.00" x 10.00" x 10.20"

Line Reactor Required. Available from Bonitron.

Drive Power
(Nominal)
Precharge Model Number Output Current Dimensions
(H x W x D)
208 - 240 VAC Drives
0 - 7.5 HP No M3713DM-L030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 7.5 HP Yes M3713SC-L030-B5 30 A 17.75" x 5.50" x 7.80"
7.5 - 20 HP No M3713DM-L075-B5 75 A 17.75" x 5.50" x 7.80"
7.5 - 20 HP Yes M3713SC-L075-B5 75 A 17.75" x 5.50" x 7.80"
460 - 480 VAC Drives
0 - 15 HP No M3713DM-H030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 15 HP Yes M3713SC-H030-B5 30 A 17.75" x 5.50" x 7.80"
15 - 40 HP No M3713DM-L075-B5 75 A 17.75" x 5.50" x 7.80"
15 - 40 HP Yes M3713SC-H075-B5 75 A 17.75" x 5.50" x 7.80"
40 - 100 HP No M3713DM-H150-K7 150 A 20.00" x 7.12" x 10.35"
40 - 100 HP Yes M3713SC-H150-K7 150 A 20.00" x 7.12" x 10.35"
575 - 600 VAC Drives
0 - 20 HP No M3713DM-C030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 20 HP Yes M3713SC-C030-B5 30 A 17.75" x 5.50" x 7.80"
20 - 50 HP No M3713DM-C075-B5 75 A 17.75" x 5.50" x 7.80"
20 - 50 HP Yes M3713SC-C075-B5 75 A 17.75" x 5.50" x 7.80"
50 - 125 HP No M3713DM-C150-K7 150 A 20.00" x 7.12" x 10.35"
50 - 125 HP Yes M3713SC-C150-K7 150 A 20.00" x 7.12" x 10.35"

Notes:
Contact Bonitron for Resistor sizing. Transistors are sized for 150% overload.
Tables are a general guide only and selections should be verified by those purchasing equipment. DC bus connections needed to connect a Bonitron transistor, line regen or power supply. Confirm resistor ohm rating is higher than drive's min ohm if connecting directly to drive brake. Please contact Bonitron at 615-244-2825 to verify you have the best solution for your spec.


Drive Power Duty Model Number Braking Current
(Peak)
Braking Current
(RMS)
Minimum
Resistance
Dimensions
(H x W x D)
230 - 240 VAC | 375VDC Setpoint
0 - 3.3 HP 0 - 20% M3675T-L10 10 A 2 A 38 Ω 7.00" x 2.06" x 6.75"
0 - 3.3 HP 20 - 50% M3675T-L30 30 A 7.75 A 12.5 Ω 12.75" x 3.00" x 8.70"
0 - 3.3 HP 50 - 100% M3675T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
3.3 - 5 HP 0 - 20% M3675T-L15 15 A 3.8 A 25 Ω 12.75" x 3.00" x 8.70"
3.3 - 5 HP 20 - 50% M3675T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
3.3 - 5 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
5 - 10 HP 0 - 20% M3675T-L30 30 A 7.75 A 12.5 Ω 12.75" x 3.00" x 8.70"
5 - 10 HP 20 - 50% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
5 - 10 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 0 - 20% M3575T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
10 - 20 HP 20 - 50% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
380 - 415 VAC | 620VDC Setpoint
0 - 5 HP 0 - 20% M3675T-E10 10 A 2 A 62 Ω 7.00" x 2.06" x 6.75"
0 - 5 HP 20 - 50% M3675T-E30 30 A 7.75 A 20.5 Ω 12.75" x 3.00" x 8.70"
0 - 5 HP 50 - 100% M3675T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
5 - 8 HP 0 - 20% M3675T-E15 15 A 3.8 A 41.25 Ω 12.75" x 3.00" x 8.70"
5 - 8 HP 20 - 50% M3675T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
5 - 8 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
8 - 15 HP 0 - 20% M3575T-E30 30 A 7.75 A 20.5 Ω 12.75" x 3.00" x 8.70"
8 - 15 HP 20 - 50% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
8 - 15 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
460 - 480 VAC | 750VDC Setpoint
0 - 6.5 HP 0 - 20% M3675T-H10 10 A 2 A 75 Ω 7.00" x 2.06" x 6.75"
0 - 6.5 HP 20 - 50% M3675T-H30 30 A 7.75 A 25 Ω 12.75" x 3.00" x 8.70"
0 - 6.5 HP 50 - 100% M3675T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
6.5 - 10 HP 0 - 20% M3675T-H15 15 A 3.8 A 50 Ω 12.75" x 3.00" x 8.70"
6.5 - 10 HP 20 - 50% M3675T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
6.5 - 10 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 0 - 20% M3575T-H30 30 A 7.75 A 25 Ω 12.75" x 3.00" x 8.70"
10 - 20 HP 20 - 50% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"

* Requires external reactor. Reactor sold by Bonitron

Drive Power
(Nominal)
Model Number Output Current Input Current
(AC RMS)
Dimensions
(H x W x D)
208 - 240 VAC Drives
0 - 30 HP M3712-L030 100 A 175 A 20.00" x 7.12" x 10.30"
460 - 480 VAC Drives
0 - 30 HP M3712-H030 55 A 115 A 20.00" x 7.12" x 10.30"

Line Reactor Required. Available from Bonitron.

Drive Power
(Nominal)
Precharge Model Number Output Current Dimensions
(H x W x D)
208 - 240 VAC Drives
0 - 7.5 HP No M3713DM-L030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 7.5 HP Yes M3713SC-L030-B5 30 A 17.75" x 5.50" x 7.80"
7.5 - 20 HP No M3713DM-L075-B5 75 A 17.75" x 5.50" x 7.80"
7.5 - 20 HP Yes M3713SC-L075-B5 75 A 17.75" x 5.50" x 7.80"
460 - 480 VAC Drives
0 - 15 HP No M3713DM-H030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 15 HP Yes M3713SC-H030-B5 30 A 17.75" x 5.50" x 7.80"

Notes:
Contact Bonitron for Resistor sizing. Transistors are sized for 150% overload.
Tables are a general guide only and selections should be verified by those purchasing equipment. DC bus connections needed to connect a Bonitron transistor, line regen or power supply. Confirm resistor ohm rating is higher than drive's min ohm if connecting directly to drive brake. Please contact Bonitron at 615-244-2825 to verify you have the best solution for your spec.


Drive Power Duty Model Number Braking Current
(Peak)
Braking Current
(RMS)
Minimum
Resistance
Dimensions
(H x W x D)
230 - 240 VAC | 375VDC Setpoint
0 - 3.3 HP 0 - 20% M3675T-L10 10 A 2 A 38 Ω 7.00" x 2.06" x 6.75"
0 - 3.3 HP 20 - 50% M3675T-L30 30 A 7.75 A 12.5 Ω 12.75" x 3.00" x 8.70"
0 - 3.3 HP 50 - 100% M3675T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
3.3 - 5 HP 0 - 20% M3675T-L15 15 A 3.8 A 25 Ω 12.75" x 3.00" x 8.70"
3.3 - 5 HP 20 - 50% M3675T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
3.3 - 5 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
5 - 10 HP 0 - 20% M3675T-L30 30 A 7.75 A 12.5 Ω 12.75" x 3.00" x 8.70"
5 - 10 HP 20 - 50% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
5 - 10 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 0 - 20% M3575T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
10 - 20 HP 20 - 50% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
380 - 415 VAC | 620VDC Setpoint
0 - 5 HP 0 - 20% M3675T-E10 10 A 2 A 62 Ω 7.00" x 2.06" x 6.75"
0 - 5 HP 20 - 50% M3675T-E30 30 A 7.75 A 20.5 Ω 12.75" x 3.00" x 8.70"
0 - 5 HP 50 - 100% M3675T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
5 - 8 HP 0 - 20% M3675T-E15 15 A 3.8 A 41.25 Ω 12.75" x 3.00" x 8.70"
5 - 8 HP 20 - 50% M3675T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
5 - 8 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
8 - 15 HP 0 - 20% M3575T-E30 30 A 7.75 A 20.5 Ω 12.75" x 3.00" x 8.70"
8 - 15 HP 20 - 50% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
8 - 15 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
15 - 40 HP 0 - 20% M3675T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
15 - 40 HP 20 - 50% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
15 - 40 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
460 - 480 VAC | 750VDC Setpoint
0 - 6.5 HP 0 - 20% M3675T-H10 10 A 2 A 75 Ω 7.00" x 2.06" x 6.75"
0 - 6.5 HP 20 - 50% M3675T-H30 30 A 7.75 A 25 Ω 12.75" x 3.00" x 8.70"
0 - 6.5 HP 50 - 100% M3675T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
6.5 - 10 HP 0 - 20% M3675T-H15 15 A 3.8 A 50 Ω 12.75" x 3.00" x 8.70"
6.5 - 10 HP 20 - 50% M3675T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
6.5 - 10 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 0 - 20% M3575T-H30 30 A 7.75 A 25 Ω 12.75" x 3.00" x 8.70"
10 - 20 HP 20 - 50% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
20 - 50 HP 0 - 20% M3675T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
20 - 50 HP 20 - 50% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
20 - 50 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
575 - 600 VAC | 940VDC Setpoint
0 - 63 HP 0 - 20% M3452-C75B7 75 A 75 A 12.5 Ω 17.75" x 7.00" x 8.10"
0 - 63 HP 20 - 50% M3452-C75B7 75 A 75 A 12.5 Ω 17.75" x 7.00" x 8.10"
0 - 63 HP 50 - 100% M3452-C75B7 75 A 75 A 12.5 Ω 17.75" x 7.00" x 8.10"

* Requires external reactor. Reactor sold by Bonitron

Drive Power
(Nominal)
Model Number Output Current Input Current
(AC RMS)
Dimensions
(H x W x D)
208 - 240 VAC Drives
0 - 30 HP M3712-L030 100 A 175 A 20.00" x 7.12" x 10.30"
460 - 480 VAC Drives
0 - 30 HP M3712-H030 55 A 115 A 20.00" x 7.12" x 10.30"

Line Reactor Required. Available from Bonitron.

Drive Power
(Nominal)
Precharge Model Number Output Current Dimensions
(H x W x D)
208 - 240 VAC Drives
0 - 7.5 HP No M3713DM-L030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 7.5 HP Yes M3713SC-L030-B5 30 A 17.75" x 5.50" x 7.80"
7.5 - 20 HP No M3713DM-L075-B5 75 A 17.75" x 5.50" x 7.80"
7.5 - 20 HP Yes M3713SC-L075-B5 75 A 17.75" x 5.50" x 7.80"
460 - 480 VAC Drives
0 - 15 HP No M3713DM-H030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 15 HP Yes M3713SC-H030-B5 30 A 17.75" x 5.50" x 7.80"
15 - 40 HP No M3713DM-L075-B5 75 A 17.75" x 5.50" x 7.80"
15 - 40 HP Yes M3713SC-H075-B5 75 A 17.75" x 5.50" x 7.80"
575 - 600 VAC Drives
0 - 20 HP No M3713DM-C030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 20 HP Yes M3713SC-C030-B5 30 A 17.75" x 5.50" x 7.80"
20 - 50 HP No M3713DM-C075-B5 75 A 17.75" x 5.50" x 7.80"
20 - 50 HP Yes M3713SC-C075-B5 75 A 17.75" x 5.50" x 7.80"

Notes:
Contact Bonitron for Resistor sizing. Transistors are sized for 150% overload.
Tables are a general guide only and selections should be verified by those purchasing equipment. DC bus connections needed to connect a Bonitron transistor, line regen or power supply. Confirm resistor ohm rating is higher than drive's min ohm if connecting directly to drive brake. Please contact Bonitron at 615-244-2825 to verify you have the best solution for your spec.


Drive Power Duty Model Number Braking Current
(Peak)
Braking Current
(RMS)
Minimum
Resistance
Dimensions
(H x W x D)
230 - 240 VAC | 375VDC Setpoint
0 - 3.3 HP 0 - 20% M3675T-L10 10 A 2 A 38 Ω 7.00" x 2.06" x 6.75"
0 - 3.3 HP 20 - 50% M3675T-L30 30 A 7.75 A 12.5 Ω 12.75" x 3.00" x 8.70"
0 - 3.3 HP 50 - 100% M3675T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
3.3 - 5 HP 0 - 20% M3675T-L15 15 A 3.8 A 25 Ω 12.75" x 3.00" x 8.70"
3.3 - 5 HP 20 - 50% M3675T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
3.3 - 5 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
5 - 10 HP 0 - 20% M3675T-L30 30 A 7.75 A 12.5 Ω 12.75" x 3.00" x 8.70"
5 - 10 HP 20 - 50% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
5 - 10 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 0 - 20% M3575T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
10 - 20 HP 20 - 50% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
380 - 415 VAC | 620VDC Setpoint
0 - 5 HP 0 - 20% M3675T-E10 10 A 2 A 62 Ω 7.00" x 2.06" x 6.75"
0 - 5 HP 20 - 50% M3675T-E30 30 A 7.75 A 20.5 Ω 12.75" x 3.00" x 8.70"
0 - 5 HP 50 - 100% M3675T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
5 - 8 HP 0 - 20% M3675T-E15 15 A 3.8 A 41.25 Ω 12.75" x 3.00" x 8.70"
5 - 8 HP 20 - 50% M3675T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
5 - 8 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
8 - 15 HP 0 - 20% M3575T-E30 30 A 7.75 A 20.5 Ω 12.75" x 3.00" x 8.70"
8 - 15 HP 20 - 50% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
8 - 15 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
15 - 40 HP 0 - 20% M3675T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
15 - 40 HP 20 - 50% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
15 - 40 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
460 - 480 VAC | 750VDC Setpoint
0 - 6.5 HP 0 - 20% M3675T-H10 10 A 2 A 75 Ω 7.00" x 2.06" x 6.75"
0 - 6.5 HP 20 - 50% M3675T-H30 30 A 7.75 A 25 Ω 12.75" x 3.00" x 8.70"
0 - 6.5 HP 50 - 100% M3675T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
6.5 - 10 HP 0 - 20% M3675T-H15 15 A 3.8 A 50 Ω 12.75" x 3.00" x 8.70"
6.5 - 10 HP 20 - 50% M3675T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
6.5 - 10 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 0 - 20% M3575T-H30 30 A 7.75 A 25 Ω 12.75" x 3.00" x 8.70"
10 - 20 HP 20 - 50% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
20 - 50 HP 0 - 20% M3675T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
20 - 50 HP 20 - 50% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
20 - 50 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"

* Requires external reactor. Reactor sold by Bonitron

Drive Power
(Nominal)
Model Number Output Current Input Current
(AC RMS)
Dimensions
(H x W x D)
208 - 240 VAC Drives
0 - 30 HP M3712-L030 100 A 175 A 20.00" x 7.12" x 10.30"
460 - 480 VAC Drives
0 - 30 HP M3712-H030 55 A 115 A 20.00" x 7.12" x 10.30"

Line Reactor Required. Available from Bonitron.

Drive Power
(Nominal)
Precharge Model Number Output Current Dimensions
(H x W x D)
208 - 240 VAC Drives
0 - 7.5 HP No M3713DM-L030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 7.5 HP Yes M3713SC-L030-B5 30 A 17.75" x 5.50" x 7.80"
7.5 - 20 HP No M3713DM-L075-B5 75 A 17.75" x 5.50" x 7.80"
7.5 - 20 HP Yes M3713SC-L075-B5 75 A 17.75" x 5.50" x 7.80"
460 - 480 VAC Drives
0 - 15 HP No M3713DM-H030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 15 HP Yes M3713SC-H030-B5 30 A 17.75" x 5.50" x 7.80"
15 - 40 HP No M3713DM-L075-B5 75 A 17.75" x 5.50" x 7.80"
15 - 40 HP Yes M3713SC-H075-B5 75 A 17.75" x 5.50" x 7.80"

Notes:
Contact Bonitron for Resistor sizing. Transistors are sized for 150% overload.
Tables are a general guide only and selections should be verified by those purchasing equipment. DC bus connections needed to connect a Bonitron transistor, line regen or power supply. Confirm resistor ohm rating is higher than drive's min ohm if connecting directly to drive brake. Please contact Bonitron at 615-244-2825 to verify you have the best solution for your spec.


Drive Power Duty Model Number Braking Current
(Peak)
Braking Current
(RMS)
Minimum
Resistance
Dimensions
(H x W x D)
230 - 240 VAC | 375VDC Setpoint
0 - 3.3 HP 0 - 20% M3675T-L10 10 A 2 A 38 Ω 7.00" x 2.06" x 6.75"
0 - 3.3 HP 20 - 50% M3675T-L30 30 A 7.75 A 12.5 Ω 12.75" x 3.00" x 8.70"
0 - 3.3 HP 50 - 100% M3675T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
3.3 - 5 HP 0 - 20% M3675T-L15 15 A 3.8 A 25 Ω 12.75" x 3.00" x 8.70"
3.3 - 5 HP 20 - 50% M3675T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
3.3 - 5 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
5 - 10 HP 0 - 20% M3675T-L30 30 A 7.75 A 12.5 Ω 12.75" x 3.00" x 8.70"
5 - 10 HP 20 - 50% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
5 - 10 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
380 - 415 VAC | 620VDC Setpoint
0 - 5 HP 0 - 20% M3675T-E10 10 A 2 A 62 Ω 7.00" x 2.06" x 6.75"
0 - 5 HP 20 - 50% M3675T-E30 30 A 7.75 A 20.5 Ω 12.75" x 3.00" x 8.70"
0 - 5 HP 50 - 100% M3675T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
5 - 8 HP 0 - 20% M3675T-E15 15 A 3.8 A 41.25 Ω 12.75" x 3.00" x 8.70"
5 - 8 HP 20 - 50% M3675T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
5 - 8 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
8 - 15 HP 0 - 20% M3575T-E30 30 A 7.75 A 20.5 Ω 12.75" x 3.00" x 8.70"
8 - 15 HP 20 - 50% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
8 - 15 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
460 - 480 VAC | 750VDC Setpoint
0 - 6.5 HP 0 - 20% M3675T-H10 10 A 2 A 75 Ω 7.00" x 2.06" x 6.75"
0 - 6.5 HP 20 - 50% M3675T-H30 30 A 7.75 A 25 Ω 12.75" x 3.00" x 8.70"
0 - 6.5 HP 50 - 100% M3675T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
6.5 - 10 HP 0 - 20% M3675T-H15 15 A 3.8 A 50 Ω 12.75" x 3.00" x 8.70"
6.5 - 10 HP 20 - 50% M3675T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
6.5 - 10 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"

* Requires external reactor. Reactor sold by Bonitron

Drive Power
(Nominal)
Model Number Output Current Input Current
(AC RMS)
Dimensions
(H x W x D)
208 - 240 VAC Drives
0 - 30 HP M3712-L030 100 A 175 A 20.00" x 7.12" x 10.30"
460 - 480 VAC Drives
0 - 30 HP M3712-H030 55 A 115 A 20.00" x 7.12" x 10.30"

Line Reactor Required. Available from Bonitron.

Drive Power
(Nominal)
Precharge Model Number Output Current Dimensions
(H x W x D)
208 - 240 VAC Drives
0 - 7.5 HP No M3713DM-L030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 7.5 HP Yes M3713SC-L030-B5 30 A 17.75" x 5.50" x 7.80"
7.5 - 20 HP No M3713DM-L075-B5 75 A 17.75" x 5.50" x 7.80"
7.5 - 20 HP Yes M3713SC-L075-B5 75 A 17.75" x 5.50" x 7.80"
460 - 480 VAC Drives
0 - 15 HP No M3713DM-H030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 15 HP Yes M3713SC-H030-B5 30 A 17.75" x 5.50" x 7.80"

Notes:
Contact Bonitron for Resistor sizing. Transistors are sized for 150% overload.
Tables are a general guide only and selections should be verified by those purchasing equipment. DC bus connections needed to connect a Bonitron transistor, line regen or power supply. Confirm resistor ohm rating is higher than drive's min ohm if connecting directly to drive brake. Please contact Bonitron at 615-244-2825 to verify you have the best solution for your spec.


Drive Power Duty Model Number Braking Current
(Peak)
Braking Current
(RMS)
Minimum
Resistance
Dimensions
(H x W x D)
230 - 240 VAC | 375VDC Setpoint
0 - 3.3 HP 0 - 20% M3675T-L10 10 A 2 A 38 Ω 7.00" x 2.06" x 6.75"
0 - 3.3 HP 20 - 50% M3675T-L30 30 A 7.75 A 12.5 Ω 12.75" x 3.00" x 8.70"
0 - 3.3 HP 50 - 100% M3675T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
380 - 415 VAC | 620VDC Setpoint
0 - 5 HP 0 - 20% M3675T-E10 10 A 2 A 62 Ω 7.00" x 2.06" x 6.75"
0 - 5 HP 20 - 50% M3675T-E30 30 A 7.75 A 20.5 Ω 12.75" x 3.00" x 8.70"
0 - 5 HP 50 - 100% M3675T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
5 - 8 HP 0 - 20% M3675T-E15 15 A 3.8 A 41.25 Ω 12.75" x 3.00" x 8.70"
5 - 8 HP 20 - 50% M3675T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
5 - 8 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
8 - 15 HP 0 - 20% M3575T-E30 30 A 7.75 A 20.5 Ω 12.75" x 3.00" x 8.70"
8 - 15 HP 20 - 50% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
8 - 15 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
15 - 40 HP 0 - 20% M3675T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
15 - 40 HP 20 - 50% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
15 - 40 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
40 - 65 HP 0 - 20% M3675T-E125 125 A 32 A 5 Ω 17.75" x 5.50" x 8.00"
40 - 65 HP 20 - 50% M3452-E150B7 150 A 150 A 4.13 Ω 17.75" x 7.00" x 8.10"
40 - 65 HP 50 - 100% M3452-E150B7 150 A 150 A 4.13 Ω 17.75" x 7.00" x 8.10"
460 - 480 VAC | 750VDC Setpoint
0 - 6.5 HP 0 - 20% M3675T-H10 10 A 2 A 75 Ω 7.00" x 2.06" x 6.75"
0 - 6.5 HP 20 - 50% M3675T-H30 30 A 7.75 A 25 Ω 12.75" x 3.00" x 8.70"
0 - 6.5 HP 50 - 100% M3675T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
6.5 - 10 HP 0 - 20% M3675T-H15 15 A 3.8 A 50 Ω 12.75" x 3.00" x 8.70"
6.5 - 10 HP 20 - 50% M3675T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
6.5 - 10 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 0 - 20% M3575T-H30 30 A 7.75 A 25 Ω 12.75" x 3.00" x 8.70"
10 - 20 HP 20 - 50% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
20 - 50 HP 0 - 20% M3675T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
20 - 50 HP 20 - 50% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
20 - 50 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
50 - 80 HP 0 - 20% M3675T-H125 125 A 32 A 6 Ω 17.75" x 5.50" x 8.00"
50 - 80 HP 20 - 50% M3452-H150B7 150 A 150 A 5 Ω 17.75" x 7.00" x 8.10"
50 - 80 HP 50 - 100% M3452-H150B7 150 A 150 A 5 Ω 17.75" x 7.00" x 8.10"
575 - 600 VAC | 940VDC Setpoint
0 - 63 HP 0 - 20% M3452-C75B7 75 A 75 A 12.5 Ω 17.75" x 7.00" x 8.10"
0 - 63 HP 20 - 50% M3452-C75B7 75 A 75 A 12.5 Ω 17.75" x 7.00" x 8.10"
0 - 63 HP 50 - 100% M3452-C75B7 75 A 75 A 12.5 Ω 17.75" x 7.00" x 8.10"

* Requires external reactor. Reactor sold by Bonitron

Drive Power
(Nominal)
Model Number Output Current Input Current
(AC RMS)
Dimensions
(H x W x D)
208 - 240 VAC Drives
0 - 30 HP M3712-L030 100 A 175 A 20.00" x 7.12" x 10.30"
460 - 480 VAC Drives
0 - 30 HP M3712-H030 55 A 115 A 20.00" x 7.12" x 10.30"
30 - 50 HP M3712-H050 90 A 185 A 20.00" x 7.12" x 10.30"
50 - 75 HP M3712-H075 135 A 250 A 25.00" x 10.00" x 10.20"

Line Reactor Required. Available from Bonitron.

Drive Power
(Nominal)
Precharge Model Number Output Current Dimensions
(H x W x D)
208 - 240 VAC Drives
0 - 7.5 HP No M3713DM-L030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 7.5 HP Yes M3713SC-L030-B5 30 A 17.75" x 5.50" x 7.80"
460 - 480 VAC Drives
0 - 15 HP No M3713DM-H030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 15 HP Yes M3713SC-H030-B5 30 A 17.75" x 5.50" x 7.80"
15 - 40 HP No M3713DM-L075-B5 75 A 17.75" x 5.50" x 7.80"
15 - 40 HP Yes M3713SC-H075-B5 75 A 17.75" x 5.50" x 7.80"
40 - 100 HP No M3713DM-H150-K7 150 A 20.00" x 7.12" x 10.35"
40 - 100 HP Yes M3713SC-H150-K7 150 A 20.00" x 7.12" x 10.35"
575 - 600 VAC Drives
0 - 20 HP No M3713DM-C030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 20 HP Yes M3713SC-C030-B5 30 A 17.75" x 5.50" x 7.80"
20 - 50 HP No M3713DM-C075-B5 75 A 17.75" x 5.50" x 7.80"
20 - 50 HP Yes M3713SC-C075-B5 75 A 17.75" x 5.50" x 7.80"
50 - 125 HP No M3713DM-C150-K7 150 A 20.00" x 7.12" x 10.35"
50 - 125 HP Yes M3713SC-C150-K7 150 A 20.00" x 7.12" x 10.35"

Notes:
Contact Bonitron for Resistor sizing. Transistors are sized for 150% overload.
Tables are a general guide only and selections should be verified by those purchasing equipment. DC bus connections needed to connect a Bonitron transistor, line regen or power supply. Confirm resistor ohm rating is higher than drive's min ohm if connecting directly to drive brake. Please contact Bonitron at 615-244-2825 to verify you have the best solution for your spec.


Additional Drive Solutions

Lenze/Bonitron Drive Schematic

Back to Top
