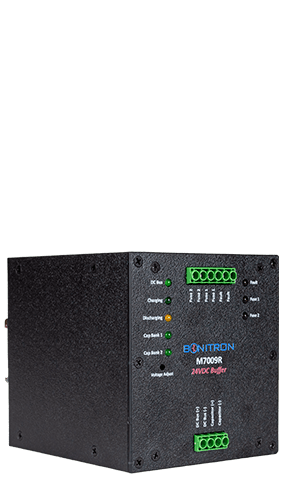

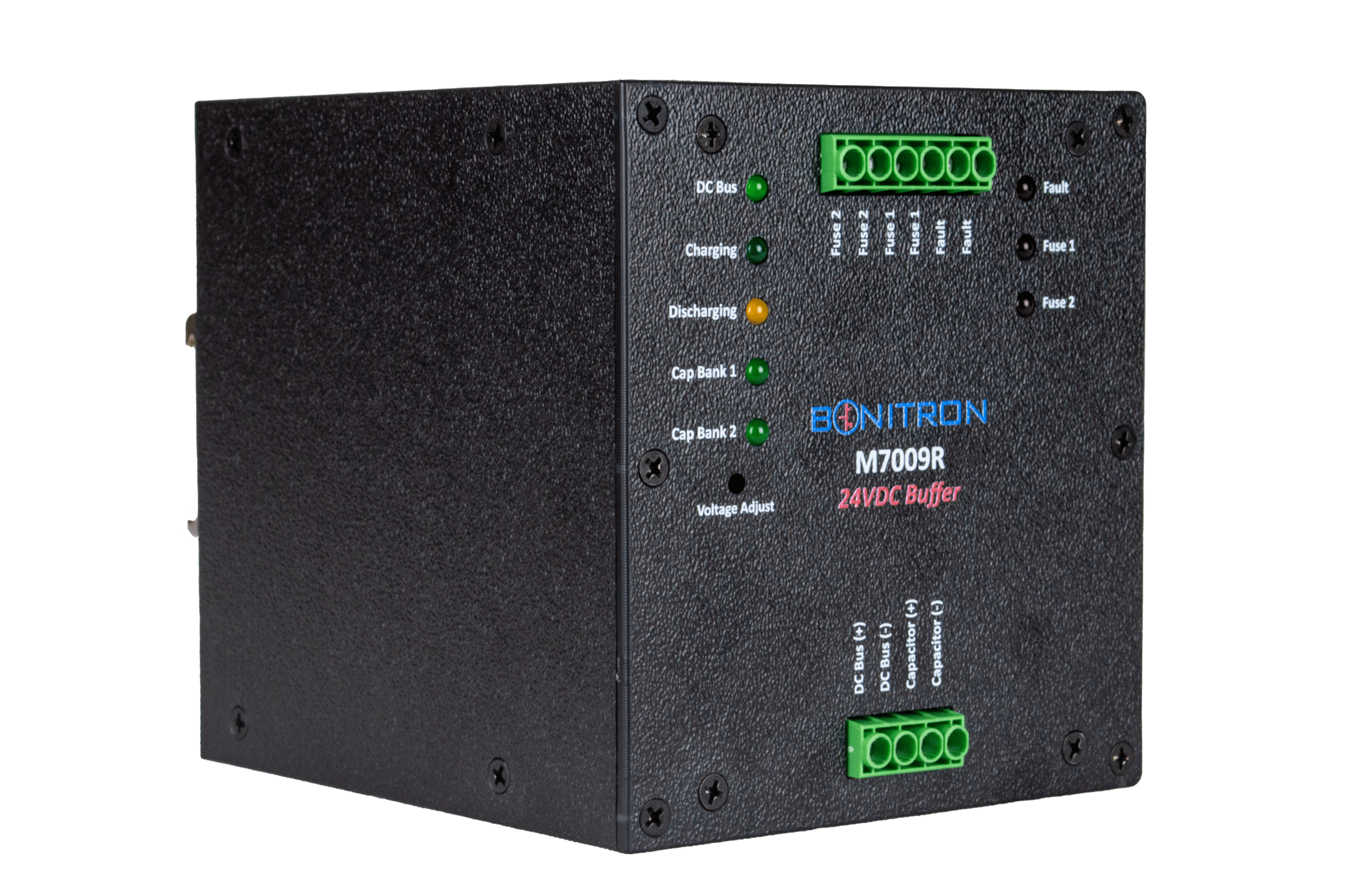

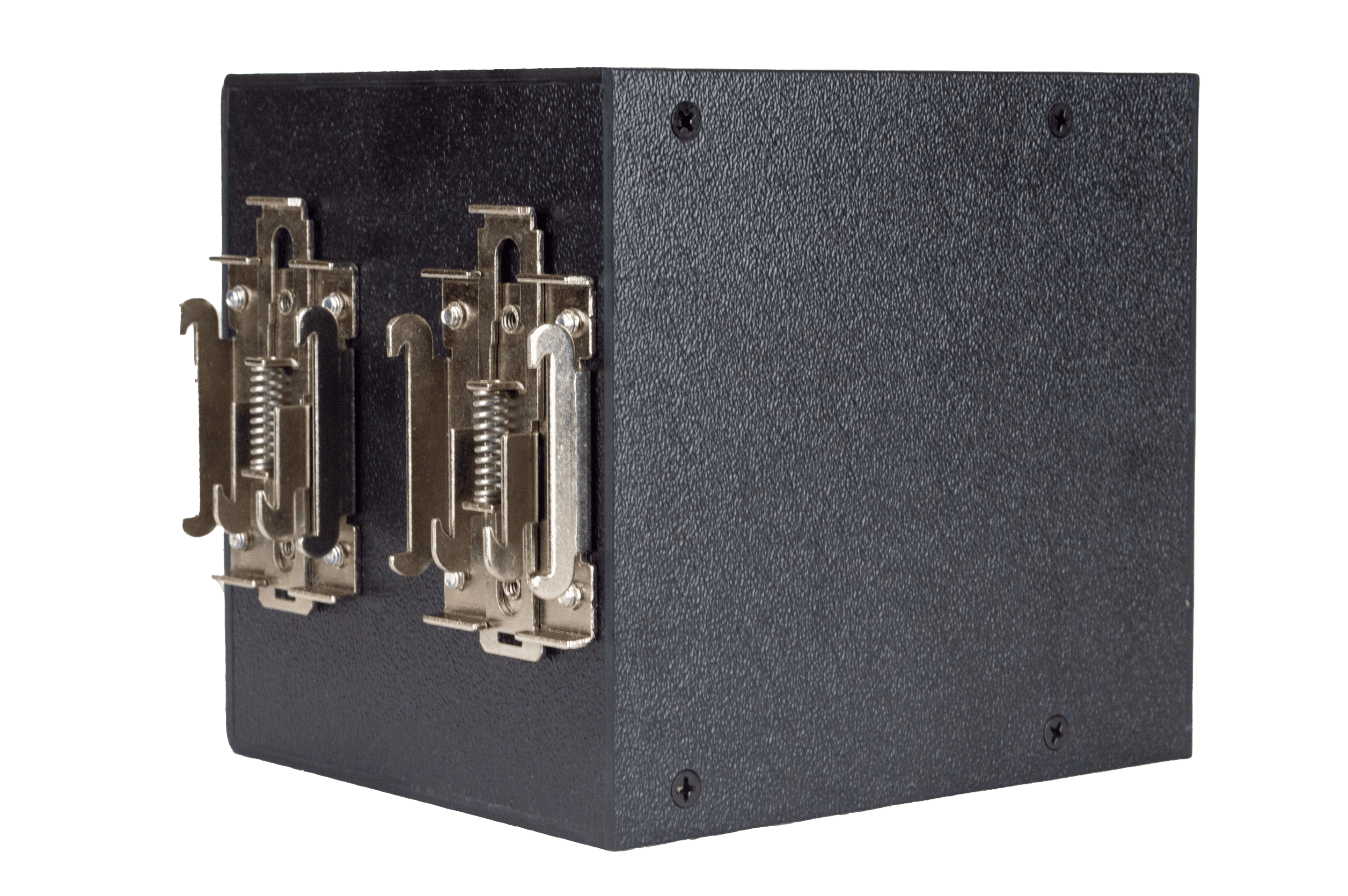

M7009R-24V20A-DIN
$1,493
24VDC REGULATED BUFFER. 20A. 5KJ.
Contact Bonitron to check availability.
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 5.75 × 5 × 5.38 in |
| Max DC Bus Voltage | 27VDC |
| Max Charging Time | 6 min |
| Max Hold-Up Current | 20A |
| Internal Storage Capacitance | 20F |
| Internal Storage Energy | 5760J |
| Unit Size (H x W x D) | 5.375" x 5" x 5.75" |
| Weight | 3lbs |
| Storage Temp | -20°C to + 65°C |
| Operating Temp | 20°C to + 40°C |
| Humidity | Below 90% non-condensing |
| Atmosphere | Free of corrosive gas and conductive dust |
