M3645 Line Regen (30 - 300A) Bonitron > Products > Overvoltage > Line Regeneration > M3645

All 150A-300A Regen models
are not UL listed.

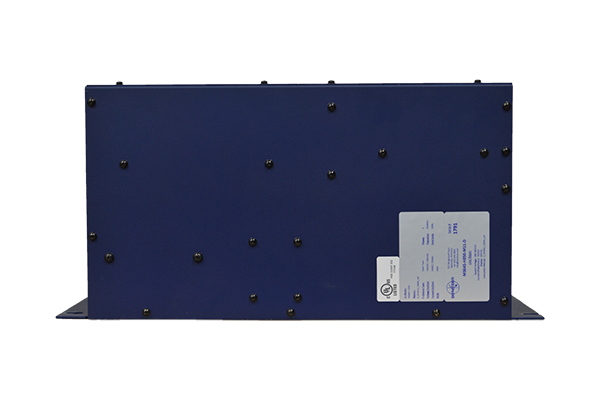

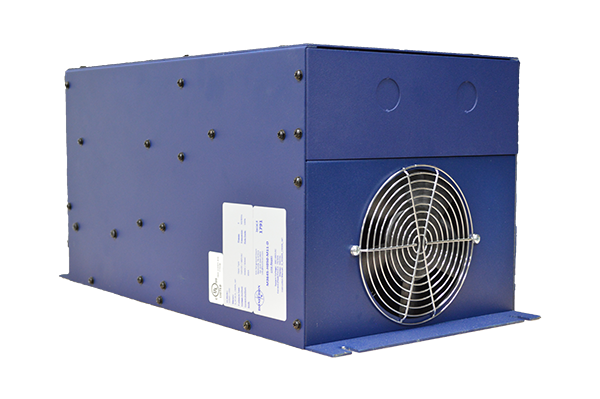

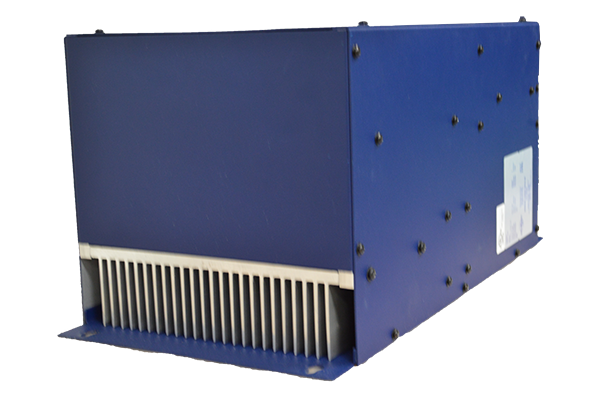

The M3645 Line Regen is the latest release of Digital Line Regeneration Braking solutions from Bonitron. The M3645 Series replaces the legendary M3345 Series, but continues its legacy with additional features, simplicity, and reliability.

When variable speed drive systems are braking, they generate power that must be dissipated. If the excess energy is not dissipated, the drive system can lose control of the process due to an overvoltage trip, or must extend the braking time to keep from overpowering the drive.

There are two common methods of dissipating excess energy. The traditional method involves a resistor, but resistors take up a significant amount of space and produce an abundance of heat, making them impractical to integrate into a drive cabinet. The better solution for most applications is the M3645 Digital Line Regen. Instead of dissipating the excess energy as heat in a resistor, the M3645 returns this energy to the power grid efficiently, with minimal heat loss, allowing the entire braking system to be installed in the drive cabinet. This reduces installation footprint and facility cooling costs.

The M3645 offers an interactive digital display that allows quick access to current, voltage, status logs, and energy monitoring data.

*Note that the M3645F includes fuses and fuse holders


The M3645 offers an interactive digital display that allows quick access to current, voltage, status logs, energy monitoring data, and more.
  • 208 - 600VAC support with 50/60Hz auto select
  • Replaces braking resistor solution
  • Over 99% efficient
  • Small footprint
  • Interactive digital display
  • Simple hook-up with no software setup
  • Integrated filtering and surge suppression
  • Parallel additional modules for higher current (Consult Bonitron for more than 2 total)
  • 150% overload
  Line Regen Fuse Plate Reactor
Phase Power Display
Type
Model Number Current  Watt Loss
(Max)
Dimensions
(H x W x D)
Model
Weight
Model Number Model Number Dimensions
(H x W x D)
Cont. Peak Cont. Peak
230 - 240VAC
  3 14.4 HP 21.6 HP Digital M3645-L030-M10-D 30 A 45 A 180W 20.00" x 10.00" x 10.10" 62 lbs M3645F-H030 N/A
  3 14.4 HP 21.6 HP LEDs M3645-E030-M10-L 30 A 45 A 180W 20.00" x 10.00" x 10.10" 62 lbs M3645F-H030
  3 24 HP 36 HP Digital M3645-L050-M11-D 50 A 75 A 265W 22.00" x 11.30" x 10.60" 78 lbs M3645F-H050
  3 24 HP 36 HP LEDs M3645-L050-M11-L 50 A 75 A 265W 22.00" x 11.30" x 10.60" 78 lbs M3645F-H050
  3 48 HP 72 HP Digital M3645-L100-M12-D 100 A 150 A 470W 24.00" x 12.00" x 12.10" 123 lbs M3645F-H100
  3 48 HP 72 HP LEDs M3645-L100-M12-L 100 A 150 A 470W 24.00" x 12.00" x 12.10" 123 lbs M3645F-H100
  3 72 HP 108 HP Digital M3645-L150T-M15-D 150 A 225 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H150 M3645-L150R 17.95" x 16.30" x 18.76"
  3 72 HP 108 HP LEDs M3645-L150T-M15-L 150 A 225 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H150 M3645-L150R 17.95" x 16.30" x 18.76"
  3 108 HP 160.8 HP Digital M3645-L225T-M15-D 225 A 335 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H225 M3645-L225R 15.15" x 18.76" x 15.78"
  3 108 HP 160.8 HP LEDs M3645-L225T-M15-L 225 A 335 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H225 M3645-L225R 17.95" x 16.30" x 18.76"
  3 144 HP 180 HP Digital M3645-L300T-M15-D 300 A 375 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H300 M3645-L300R 17.95" x 16.30" x 18.76"
  3 144 HP 180 HP LEDs M3645-L300T-M15-L 300 A 375 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H300 M3645-L300R 17.95" x 16.30" x 18.76"

Multiple units can be paralleled to cover higher current ratings. See user manual for derating information.
Consult Bonitron before using more than 2 total.

See the M3545 Line Regen for applications below 30A or for Single Phase applications.

  Line Regen Fuse Plate Reactor
Phase Power Display
Type
Model Number Current  Watt Loss
(Max)
Dimensions
(H x W x D)
Model
Weight
Model Number Model Number Dimensions
(H x W x D)
Cont. Peak Cont. Peak
380 - 415VAC
  3 25 HP 37.5 HP Digital M3645-E030-M10-D 30 A 45 A 180W 20.00" x 10.00" x 10.10" 62 lbs M3645F-H030 N/A
  3 25 HP 37.5 HP LEDs M3645-E030-M10-L 30 A 45 A 180W 20.00" x 10.00" x 10.10" 62 lbs M3645F-H030
  3 41.7 HP 62.6 HP Digital M3645-E050-M11-D 50 A 75 A 265W 22.00" x 11.30" x 10.60" 78 lbs M3645F-H050
  3 41.7 HP 62.6 HP LEDs M3645-E050-M11-L 50 A 75 A 265W 22.00" x 11.30" x 10.60" 78 lbs M3645F-H050
  3 83.4 HP 125.2 HP Digital M3645-E100-M12-D 100 A 150 A 470W 24.00" x 12.00" x 12.10" 123 lbs M3645F-H100
  3 83.4 HP 125.2 HP LEDs M3645-E100-M12-L 100 A 150 A 470W 24.00" x 12.00" x 12.10" 123 lbs M3645F-H100
  3 125 HP 187.5 HP Digital M3645-E150T-M15-D 150 A 225 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H150 M3645-E150R 17.95" x 16.30" x 18.76"
  3 125 HP 187.5 HP LEDs M3645-E150T-M15-L 150 A 225 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H150 M3645-E150R 17.95" x 16.30" x 18.76"
  3 187.5 HP 279.2 HP Digital M3645-E225T-M15-D 225 A 335 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H225 M3645-E225R 17.95" x 16.30" x 18.76"
  3 187.5 HP 279.2 HP LEDs M3645-E225T-M15-L 225 A 335 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H225 M3645-E225R 17.95" x 16.30" x 18.76"
  3 250 HP 312.5 HP Digital M3645-E300T-M15-D 300 A 375 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H300 M3645-E300R 17.95" x 16.30" x 18.76"
  3 250 HP 312.5 HP LEDs M3645-E300T-M15-L 300 A 375 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H300 M3645-E300R 17.95" x 16.30" x 18.76"

Multiple units can be paralleled to cover higher current ratings. See user manual for derating information.
Consult Bonitron before using more than 2 total.

See the M3545 Line Regen for applications below 30A or for Single Phase applications.

  Line Regen Fuse Plate Reactor
Phase Power Display
Type
Model Number Current  Watt Loss
(Max)
Dimensions
(H x W x D)
Model
Weight
Model Number Model Number Dimensions
(H x W x D)
Cont. Peak Cont. Peak
460 - 480VAC
  3 28.8 HP 43.2 HP Digital M3645-H030-M10-D 30 A 45 A 180W 20.00" x 10.00" x 10.10" 62 lbs M3645F-H030 N/A
  3 28.8 HP 43.2 HP LEDs M3645-H030-M10-L 30 A 45 A 180W 20.00" x 10.00" x 10.10" 62 lbs M3645F-H030
  3 48 HP 72 HP Digital M3645-H050-M11-D 50 A 75 A 265W 22.00" x 11.30" x 10.60" 78 lbs M3645F-H050
  3 48 HP 72 HP LEDs M3645-H050-M11-L 50 A 75 A 265W 22.00" x 11.30" x 10.60" 78 lbs M3645F-H050
  3 96 HP 144 HP Digital M3645-H100-M12-D 100 A 150 A 470W 24.00" x 12.00" x 12.10" 123 lbs M3645F-H100
  3 96 HP 144 HP LEDs M3645-H100-M12-L 100 A 150 A 470W 24.00" x 12.00" x 12.10" 123 lbs M3645F-H100
  3 144 HP 216 HP Digital M3645-H150T-M15-D 150 A 225 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H150 M3645-H150R 17.95" x 16.30" x 18.76"
  3 144 HP 216 HP LEDs M3645-H150T-M15-L 150 A 225 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H150 M3645-H150R 17.95" x 16.30" x 18.76"
  3 216 HP 321.6 HP Digital M3645-H225T-M15-D 225 A 335 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H225 M3645-H225R 17.95" x 16.30" x 18.76"
  3 216 HP 321.6 HP LEDs M3645-H225T-M15-L 225 A 335 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H225 M3645-H225R 17.95" x 16.30" x 18.76"
  3 288 HP 360 HP Digital M3645-H300T-M15-D 300 A 375 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H300 M3645-H300R 17.95" x 16.30" x 18.76"
  3 288 HP 360 HP LEDs M3645-H300T-M15-L 300 A 375 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H300 M3645-H300R 17.95" x 16.30" x 18.76"

Multiple units can be paralleled to cover higher current ratings. See user manual for derating information.
Consult Bonitron before using more than 2 total.

See the M3545 Line Regen for applications below 30A or for Single Phase applications.

  Line Regen Fuse Plate Reactor
Phase Power Display
Type
Model Number Current  Watt Loss
(Max)
Dimensions
(H x W x D)
Model
Weight
Model Number Model Number Dimensions
(H x W x D)
Cont. Peak Cont. Peak
575 - 600VAC
  3 36 HP 54 HP Digital M3645-C030-M10-D 30 A 45 A 180W 20.00" x 10.00" x 10.10" 62 lbs M3645F-C030 N/A
  3 36 HP 54 HP LEDs M3645-C030-M10-L 30 A 45 A 180W 20.00" x 10.00" x 10.10" 62 lbs M3645F-C030
  3 60 HP 90 HP Digital M3645-C050-M11-D 50 A 75 A 265W 22.00" x 11.30" x 10.60" 78 lbs M3645F-C050
  3 60 HP 90 HP LEDs M3645-C050-M11-L 50 A 75 A 265W 22.00" x 11.30" x 10.60" 78 lbs M3645F-C050
  3 120 HP 180 HP Digital M3645-C100-M12-D 100 A 150 A 470W 24.00" x 12.00" x 12.10" 123 lbs M3645F-C100
  3 120 HP 180 HP LEDs M3645-C100-M12-L 100 A 150 A 470W 24.00" x 12.00" x 12.10" 123 lbs M3645F-C100

Multiple units can be paralleled to cover higher current ratings. See user manual for derating information.
Consult Bonitron before using more than 2 total.

See the M3545 Line Regen for applications below 30A or for Single Phase applications.

M3645F

In order to maximize value, the M3645 Line Regen does not have internal fusing. Such fusing can be supplied locally (consult for sizing) or you can purchase an M3645F that installs easily with the M3645 Digital Line Regen. See the tables on this page to determine which fuses are used with your M3645 Digital Line Regen, or review the M3645F User Manual, which is linked to the right.

Kit 3645F

You can also purchase a Kit 3645F which includes only the fuses, in case you don't need the backplate. See the tables on this page to determine which Fuse Kit is used with your M3645 Digital Line Regen, or review the M3645F User Manual, which is linked to the right.

Available in AC and DC voltages.

M3645F User Manual
M3645F User Manual

M3345 Series (Old)

  • 208-480VAC 50Hz or 60Hz
  • Master/Slave for up to 270A Peak / 165A continuous
    (Configure jumper to determine Master or Slave)
  • Analog Meter
  • No event logging
  • Internal fusing
  • Integrated filtering and transient suppression
  • >95% efficient


M3645 Series (New)

  • 208 - 600VAC support with 50/60Hz auto select
  • Parallel for up to 750A peak / 600A continuous
    (Simply add another module - no setup)
  • LEDs or Interactive Digital Display
  • Event logging
  • External fusing
  • Integrated filtering and transient suppression
  • >99% efficient







Savings Calculator

HP

%

days

hours

Cost savings per year:

Note: This calculator is for illustration purposes. Contact Bonitron to discuss your application and savings.



Bonitron Line Regen units return regenerative energy back to the AC line where it can used by equipment within the facility. This reduces the amount of power required from the utility; reducing utility costs.
The formula to the right is an example for a 100HP application. Visit Bonitron.com/RegenCalculator to see your potential savings.

The calculator does not include the cost of the Line Regen itself. Contact Bonitron for pricing and to discuss your application. When comparing a Line Regen to a Resistor, consider the added cost of wiring, conduit, or cooling for a resistor. While many resistors produce enough heat that they need to be located outside, Bonitron Line Regens are 99% efficient and are designed to be integrated into the drive cabinet.

  Old Line Regen Series New Line Regen Series
Old M3345
Model Number
Current Dimensions
(H" x W" x D)
New Line Regen
Model Number
Current Dimensions
(H" x W" x D")
Model
Weight
Peak Cont. Peak Cont.
230 - 240VAC
  M3345-20BM00 10 A  6A 17.50" x 16.25" x 8.25" M3545-L015-M4 22.5A 15A 17.00" x 4.70" x 10.80" 21 lbs
  M3345-20BMF0 10A 17.50" x 18.50" x 8.25"
  M3345-21BM00 20 A 6A 17.50" x 16.25" x 8.25" M3545-L015-M4 22.5A 15A 17.00" x 4.70" x 10.80" 21 lbs
M3345-21SMF0 20A 17.75" x 6.00" x 11.00" M3645-L030-M10-D 45A 30A 20.00" x 10.00" x 10.50" 62 lbs
  M3345-22BM00 30 A 6A 17.50" x 16.25" x 8.25" M3645-L030-M10-D 45A 30A 20.00" x 10.00" x 10.50" 62 lbs
  M3345-22SMF0 30 A 20A 17.75" x 6.00" x 11.00" M3645-L030-M10-D 45A 30A 20.00" x 10.00" x 10.50" 62 lbs
M3345-22BMF0 17.50" x 18.50" x 8.25"
  M3345-24BM00 45 A 5A 17.50" x 16.25" x 8.25" M3645-L030-M10-D 45A 30A 20.00" x 10.00" x 10.50" 62 lbs
  M3345-24BMF0 20A 17.50" x 18.50" x 8.25"
M3345-24SMF0 30A 17.75" x 6.00" x 11.00"
  M3345-2AWMFM 60 A 55A 20.00" x 10.00" x 10.50" M3645-L050-M11-D 75A 50A 24.00" x 11.15" x 12.00" 78 lbs
M3345-2ACMFM 26.50" x 16.00" x 11.25"
  M3345-25WMFM 90 A 55A 20.00" x 10.00" x 10.50" M3645-L100-M12-D 150A 100A 24.00" x 12.00" x 12.00" 123 lbs
M3345-25CMFM 26.50" x 16.00" x 11.25"
380 - 415VAC
  M3345-30BM00 10 A 6A 17.50" x 16.25" x 8.25" M3645-E030-M10-D 45A 30A 20.00" x 10.00" x 10.50" 62 lbs
  M3345-30SMF0 10A 17.75" x 6.00" x 11.00"
  M3345-32BM00 30 A 6A 17.50" x 16.25" x 8.25" M3645-E030-M10-D 45A 30A 20.00" x 10.00" x 10.50" 62 lbs
  M3345-32BMF0 30 A 20A 17.50" x 18.50" x 8.25" M3645-E030-M10-D 45A 30A 20.00" x 10.00" x 10.50" 62 lbs
  M3345-32SMF0 17.75" x 6.00" x 11.00"
  M3345-34BM00 45 A 5A 17.50" x 16.25" x 8.25" M3645-E030-M10-D 45A 30A 20.00" x 10.00" x 10.50" 62 lbs
M3345-34SMF0 30A 17.75" x 6.00" x 11.00"
  M3345-34CMFM 45 A 45A 26.50" x 16.00" x 11.25" M3645-E050-M11-D 75A 50A 24.00" x 11.15" x 12.00" 78 lbs
  M3345-3AWMFM 60 A 55A 20.00" x 10.00" x 10.50" M3645-E100-M12-D 150A 100A 24.00" x 12.00" x 12.00" 123 lbs
M3345-3ACMFM 26.50" x 16.00" x 11.25"
  M3345-35WMFM 90 A 55A 20.00" x 10.00" x 10.50" M3645-E100-M12-D 150A 100A 24.00" x 12.00" x 12.00" 123 lbs
460 - 480VAC
  M3345-40BM00 10 A 6A 17.50" x 16.25" x 8.25" M3545-H015-M4 22.5A 15A 17.00" x 4.70" x 10.80" 23 lbs
  M3345-40X000 15.00" x 15.10" x 8.50"
  M3345-40BMF0 10 A 10A 17.50" x 18.50" x 8.25" M3545-H015-M4 22.5A 15A 17.00" x 4.70" x 10.80" 23 lbs
M3345-40SMF0 17.75" x 6.00" x 11.00"
M3345-40X0F0 15.00" x 18.00" x 8.50"
  M3345-41BM00 20 A 6A 17.50" x 16.25" x 8.25" M3545-H015-M4 22.5A 15A 17.00" x 4.70" x 10.80" 23 lbs
  M3345-41BMF0 20 A 20A 17.50" x 18.50" x 8.25" M3645-H030-M10-D 45A 30A 20.00" x 10.00" x 10.50" 62 lbs
M3345-41SMF0 17.75" x 6.00" x 11.00"
  M3345-42BM00 30 A 6A 17.50" x 16.25" x 8.25" M3645-H030-M10-D 45A 30A 20.00" x 10.00" x 10.50" 62 lbs
  M3345-42BMF0 30 A 20A 17.50" x 18.50" x 8.25" M3645-H030-M10-D 45A 30A 20.00" x 10.00" x 10.50" 62 lbs
M3345-42SMF0 17.75" x 6.00" x 11.00"
  M3345-42CMFM 30 A 30A 26.50" x 16.00" x 11.25" M3645-H030-M10-D 45A 30A 20.00" x 10.00" x 10.50" 62 lbs
  M3345-44BM00 45 A 5A 17.50" x 16.25" x 8.25" M3645-H030-M10-D 45A 30A 20.00" x 10.00" x 10.50" 62 lb
M3345-44X000 15.00" x 15.10" x 8.50"
  M3345-44BMF0 45 A 20A 17.50" x 18.50" x 8.25" M3645-H030-M10-D 45A 30A 20.00" x 10.00" x 10.50" 62 lbs
  M3345-44SMF0 30A 17.75" x 6.00" x 11.00"
  M3345-44CMFM 45 A 45A 26.50" x 16.00" x 11.25" M3645-H050-M11-D 75A 50A 24.00" x 11.15" x 12.00" 78 lbs
  M3345-4AY0FM 60 A 49A 16.00" x 20.00" x 11.00" M3645-H050-M11-D 75A 50A 24.00" x 11.15" x 12.00" 78 lbs
  M3345-4AWMFM 60 A 55A 20.00" x 10.00" x 10.50" M3645-H050-M11-D 75A 50A 24.00" x 11.15" x 12.00" 78 lbs
M3345-4ACMFM 26.50" x 16.00" x 11.25"
  M3345-45WMFM 90 A 55A 20.00" x 10.00" x 10.50" M3645-H100-M12-D 150A 100A 24.00" x 12.00" x 12.00" 123 lbs
  M3345-45CMFM 26.50" x 16.00" x 11.25"
  M3345-46VMFM 120 A 81A 27.00 x 10.00 x 14.50" M3645-H100-M12-D 150A 100A 24.00" x 12.00" x 12.00" 123 lbs
M3345-46CMFM 26.50 x 16.00 x 11.25"
